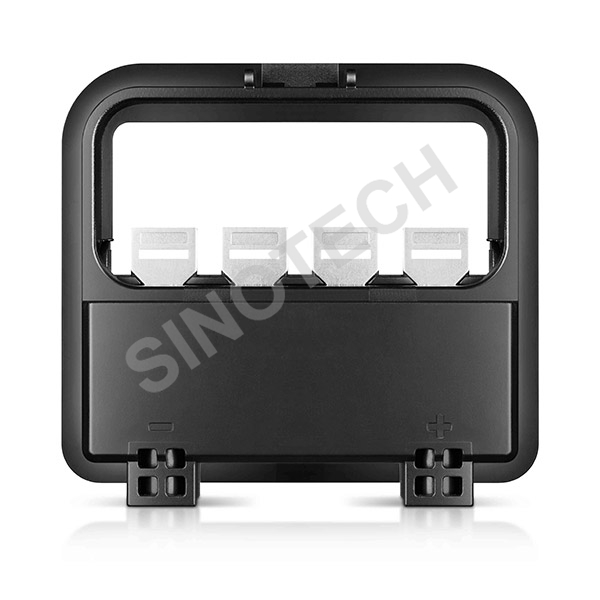

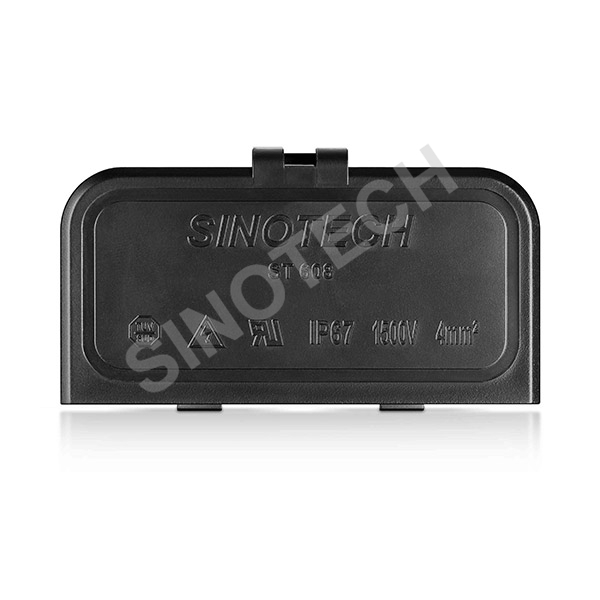

ST608


    Technical data
  • Rated current:15
  • Rated voltage :1000/1500V
  • Degree protection,mated:IP67
  • Safety class:II
  • Ambient temperature range:-40℃ to 85℃
  • Flame class:UL94-V0
  • Insulation material:PPO/PC
  • Contact material:Copper,Sn plated
  • Test voltage:6KV(50Hz,1min.)
  • Upper limiting temperature:110℃
  • TestDimension(LxWxh):84mmx77mmx15mm
  • Bus ribbon distance :16mm

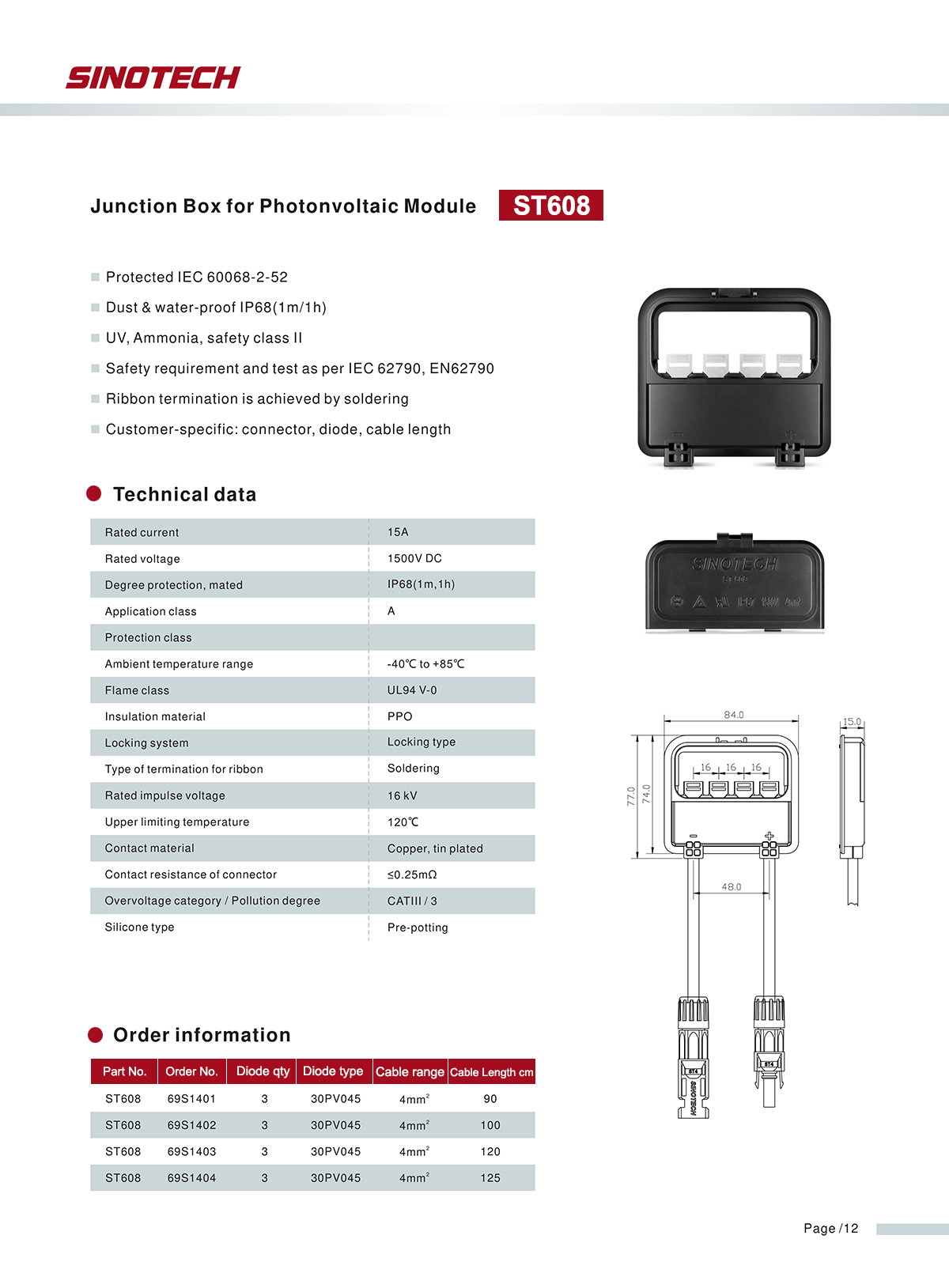

View PDF
Detailed description

Order information


Description Order no. Diode no. Diode type Range Length(cm)
ST608/3/20/4/100 69S1601 3 20SQ045 4mm² 100
ST608/3/20/4/125 69S1602 3 20SQ045 4mm² 120
ST608/3/25/4/100 69S1603 3 20SQ045 4mm² 100
ST608/3/25/4/125 69S1604 3 20SQ045 4mm² 125
ST608/N/D/R/L 69S1605 N D 4m/6m² L
