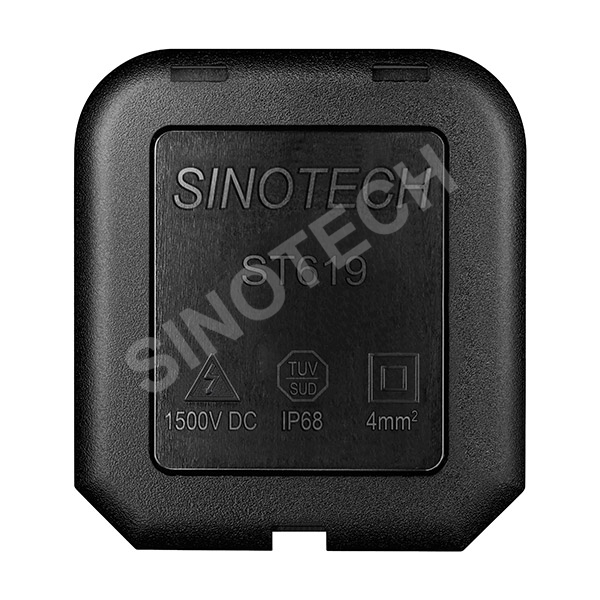

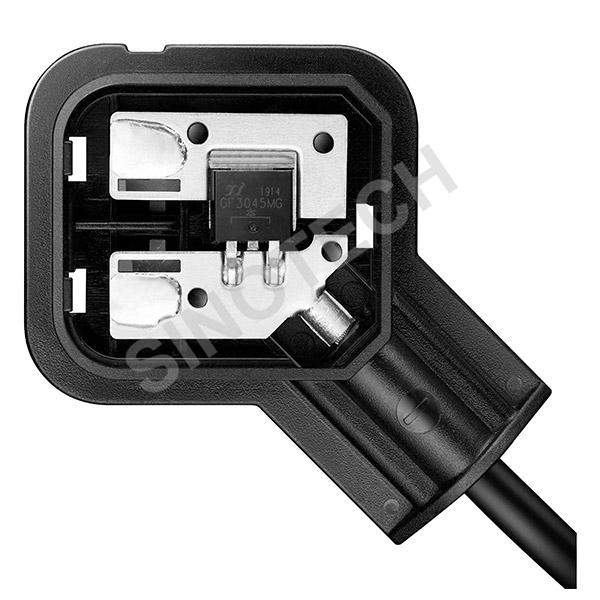

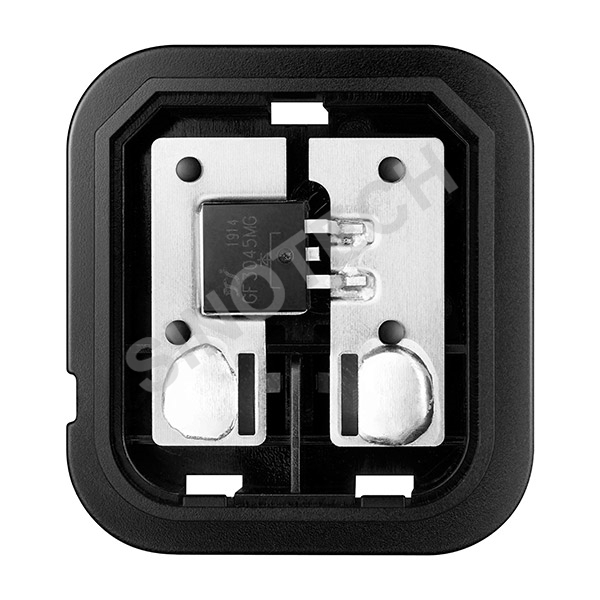

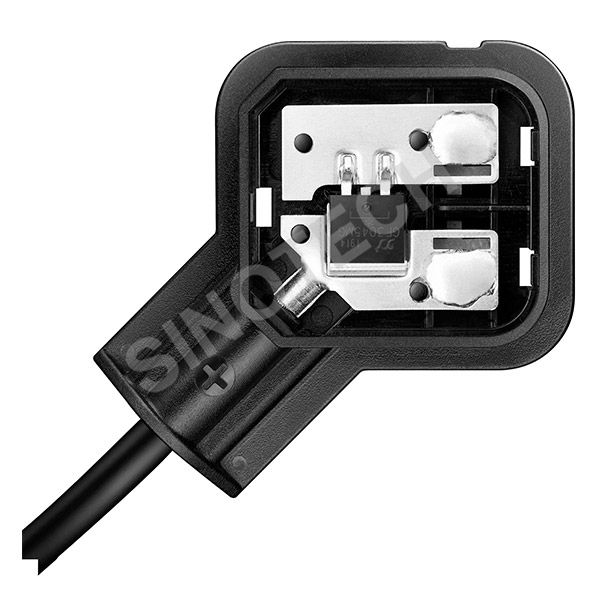

ST619

ST609

ST605

ST608

Technical data
• Rated current:15
• Rated voltage :1000/1500V
• Degree protection,mated:IP67
• Safety class:II
• Ambient temperature range:-40℃ to 85℃
• Flame class:UL94-V0
• Insulation material:PPO/PC
• Contact material:Copper,Sn plated
• Test voltage:6KV(50Hz,1min.)
• Upper limiting temperature:110℃
• TestDimension(LxWxh):84mmx77mmx15mm
• Bus ribbon distance :16mm
